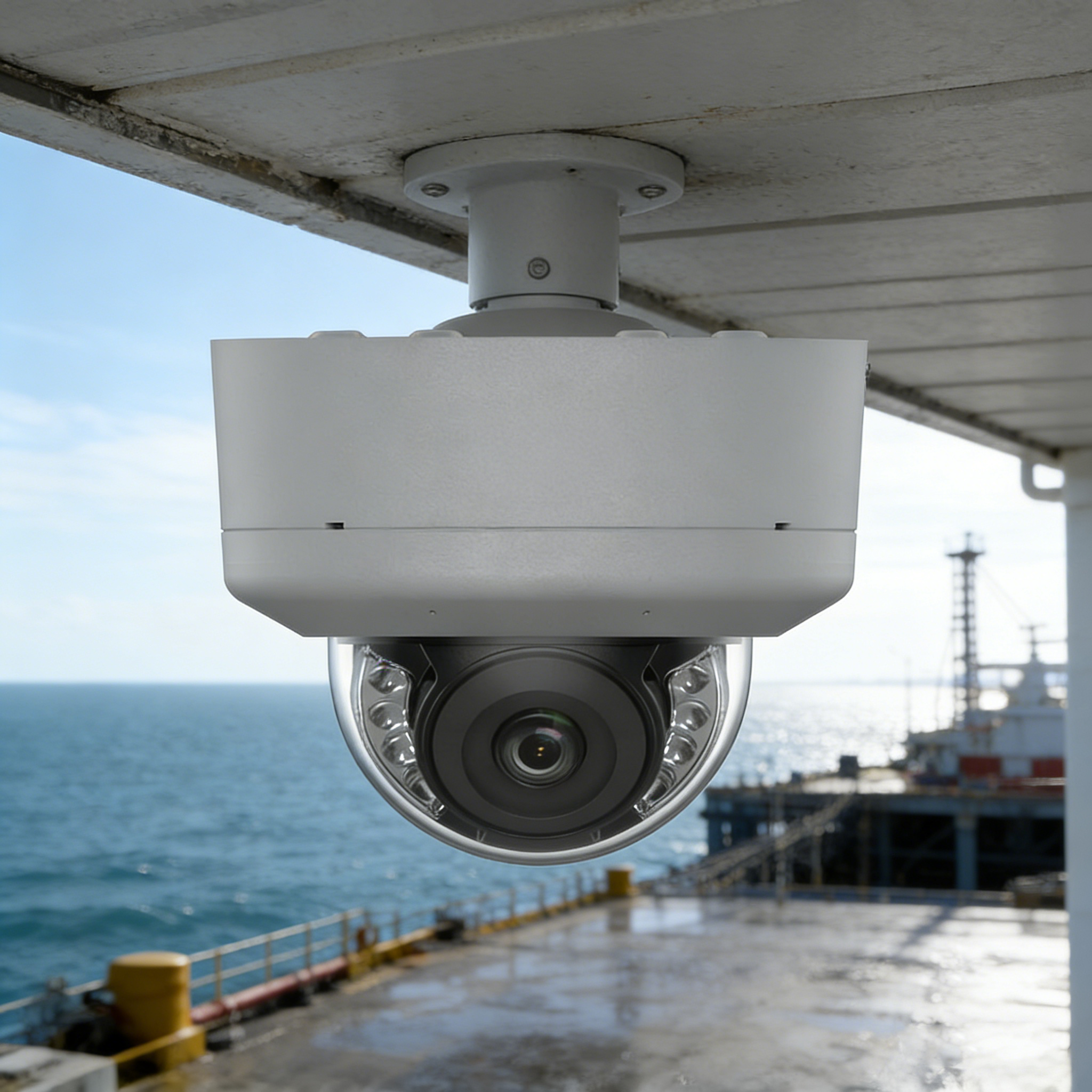

IR Fixed Mini Dome Anti-Corrosion Network Camera
- 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
- Water and dust resistant (IP67), preventing water ingress for outdoor use
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
- Lens angle adjustment allows the camera lens to be adjusted to manually focus in different directions (pan/tilt/rotate), for easy installation
Available models:
Product Data
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
-
Min. Illumination
Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2°
4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8°
6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
- Lens MountM12
- ApertureF1.6
- DORI
-
DORI
2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m
4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m
6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 15 m
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream
50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)5 fixed regions for each stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI, ISUP 5.0
-
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
- Network StorageNAS (NFS, SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Plug-in required live view: IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, 3D DNR, defog
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
- Alarm 1 alarm input, 1 alarm output
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
-
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection, unattended baggage detection, object removal detection
- General
-
Power
12 VDC, 0.4 A, max. 5 W, two-core terminal block
PoE (802.3af, Class 3, 36 V to 57 V), 0.1 A
- MaterialSUS 316L Metal
- DimensionØ113 mm × 77.3 mm (4.45" × 3.04")
- Package Dimension257 mm × 167 mm × 145 mm (10.12" × 6.57" × 5.71")
- WeightApprox. 1500 g (3.3 lb.)
- With Package WeightApprox. 1900 g (4.2 lb.)
- Startup and Operating Conditions-30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, password protection, privacy mask, watermark, IP address filter, mirror
- Approval
-
EMC
FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015
IC: IC-VoC (ICES-003 Issue 7:2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
-
Safety
UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014
CB: IEC 62368-1:2014
BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015
LOA: SANS IEC60950-1
- EnvironmentCE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
- ProtectionIP67 (IEC 60529-2013)
-
Anti-Corrosion Protection
WF2, NEMA-4X
C5-M: 720H neutral salt spray, 480H water condensation;
Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity;
Interior environments: buildings or areas with almost permanent condensation and with high pollution.
