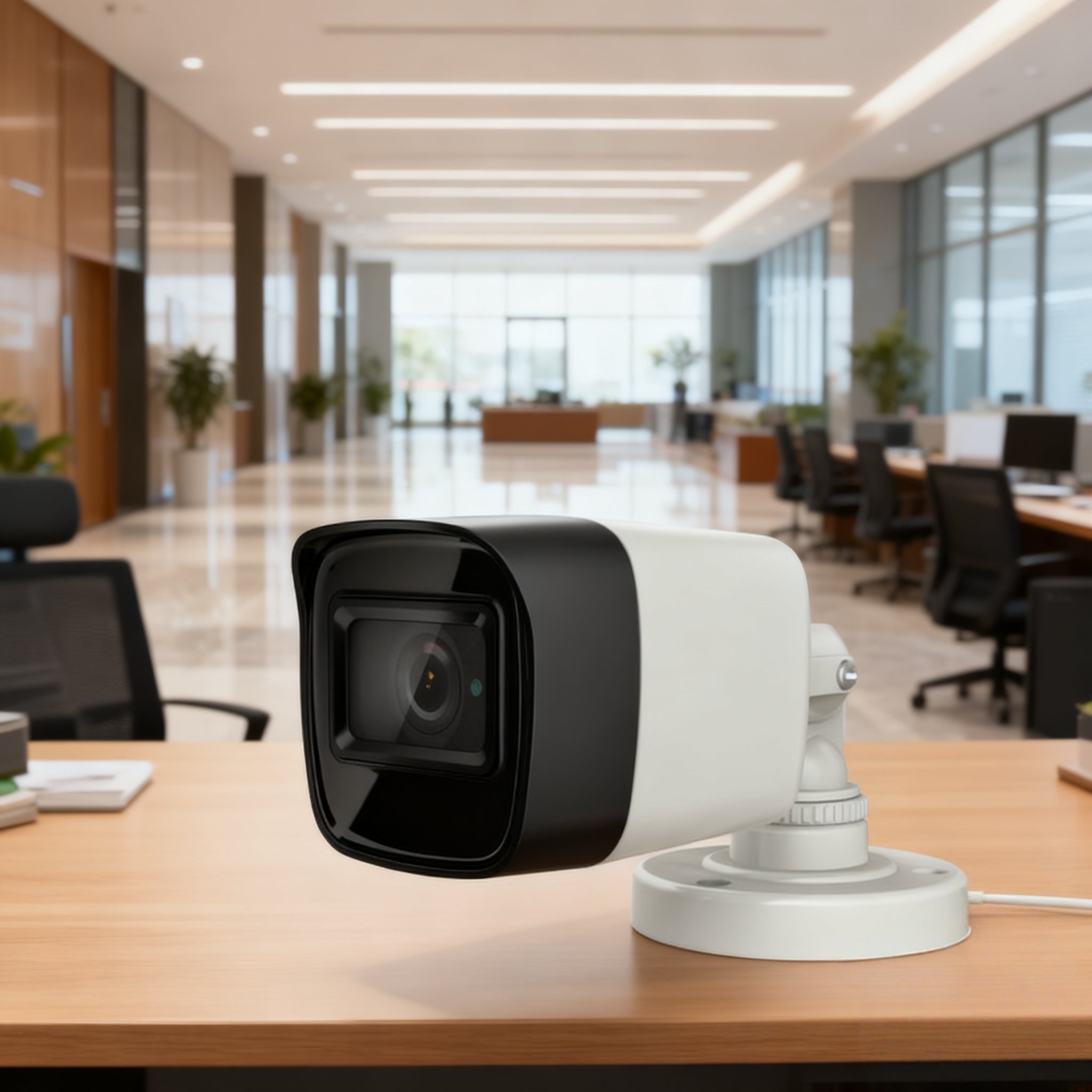

HIKVISION DS-2CE16U1T-ITPF 4K Fixed Mini Bullet Camera
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.
Ask Our Experts Text Chat | Email |
Important Information Regarding Order and Pricing
|
Quality Certifications: |
4K Fixed Mini Bullet Camera
- 8 MP bullet camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Available models:
Product Data
- Camera
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
- Lens MountM16
- Image
- Image SettingsBrightness, Sharpness, DNR, Smart IR, HLC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps,2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR/ 105 dB
- Image EnhancementBLC
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video Output1 HD analog output,TVI/AHD/CVI/CVBS
- General
- MaterialPlastic
- Dimension58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42")
- Approx. 210 g (0.46 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish
-
Power Supply
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 5.3 W
- IR RangeUp to 30 m
- Approval
- ProtectionIP67
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
-
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
- Lens MountM16
- Image SettingsBrightness, Sharpness, DNR, Smart IR, HLC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps,2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR/ 105 dB
- Image EnhancementBLC
- White BalanceAuto/Manual
- AGCYes
- Video Output1 HD analog output,TVI/AHD/CVI/CVBS
- MaterialPlastic
- Dimension58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42")
- Approx. 210 g (0.46 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish
-
Power Supply
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 5.3 W
- IR RangeUp to 30 m
- ProtectionIP67
