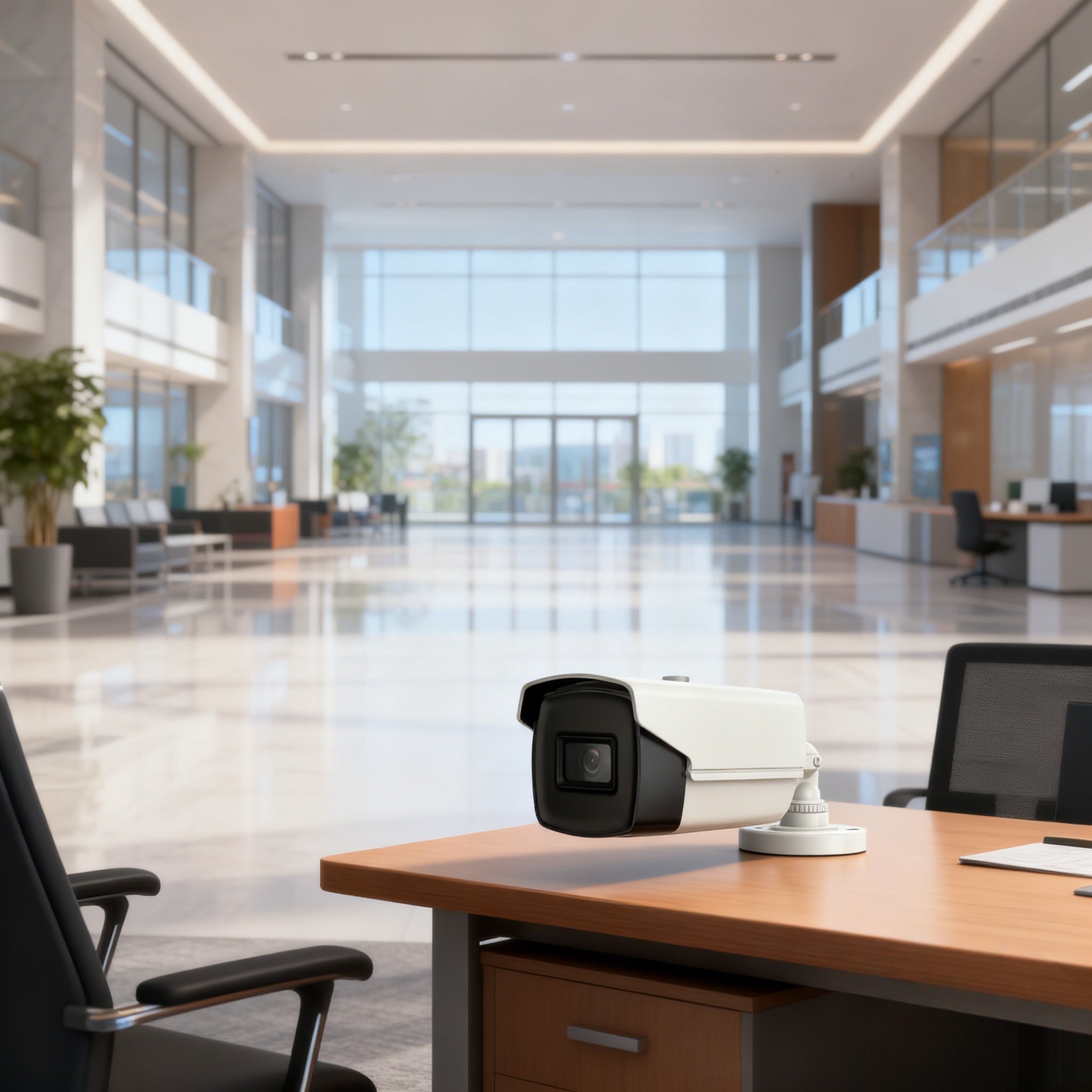

HIKVISION DS-2CE16U1T-IT5F 4K Fixed Bullet Camera
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.
Ask Our Experts Text Chat | Email |
Important Information Regarding Order and Pricing
|
Quality Certifications: |
4K Fixed Bullet Camera
- 8 MP bullet camera
- EXIR 2.0: advanced infrared technology with 80 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Available models:
Product Data
- Camera
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), B/W: 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOVHorizontal FOV 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
- Lens MountM16
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 80 m
- Smart Supplement LightYes
- Image
- Image SettingsBrightness;Sharpness;AGC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC;HLC
- Noise Reduction2D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
- General
-
Power
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Max. 5.9 W
- MaterialFront cover: Metal, Main body: Plastic
- Dimension81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
- Approx. 435 g (0.96 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), B/W: 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOVHorizontal FOV 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
- Lens MountM16
- Supplement Light TypeIR
- Supplement Light RangeUp to 80 m
- Smart Supplement LightYes
- Image SettingsBrightness;Sharpness;AGC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC;HLC
- Noise Reduction2D DNR
- White BalanceAuto/Manual
- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
-
Power
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Max. 5.9 W
- MaterialFront cover: Metal, Main body: Plastic
- Dimension81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
- Approx. 435 g (0.96 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- ProtectionIP67
