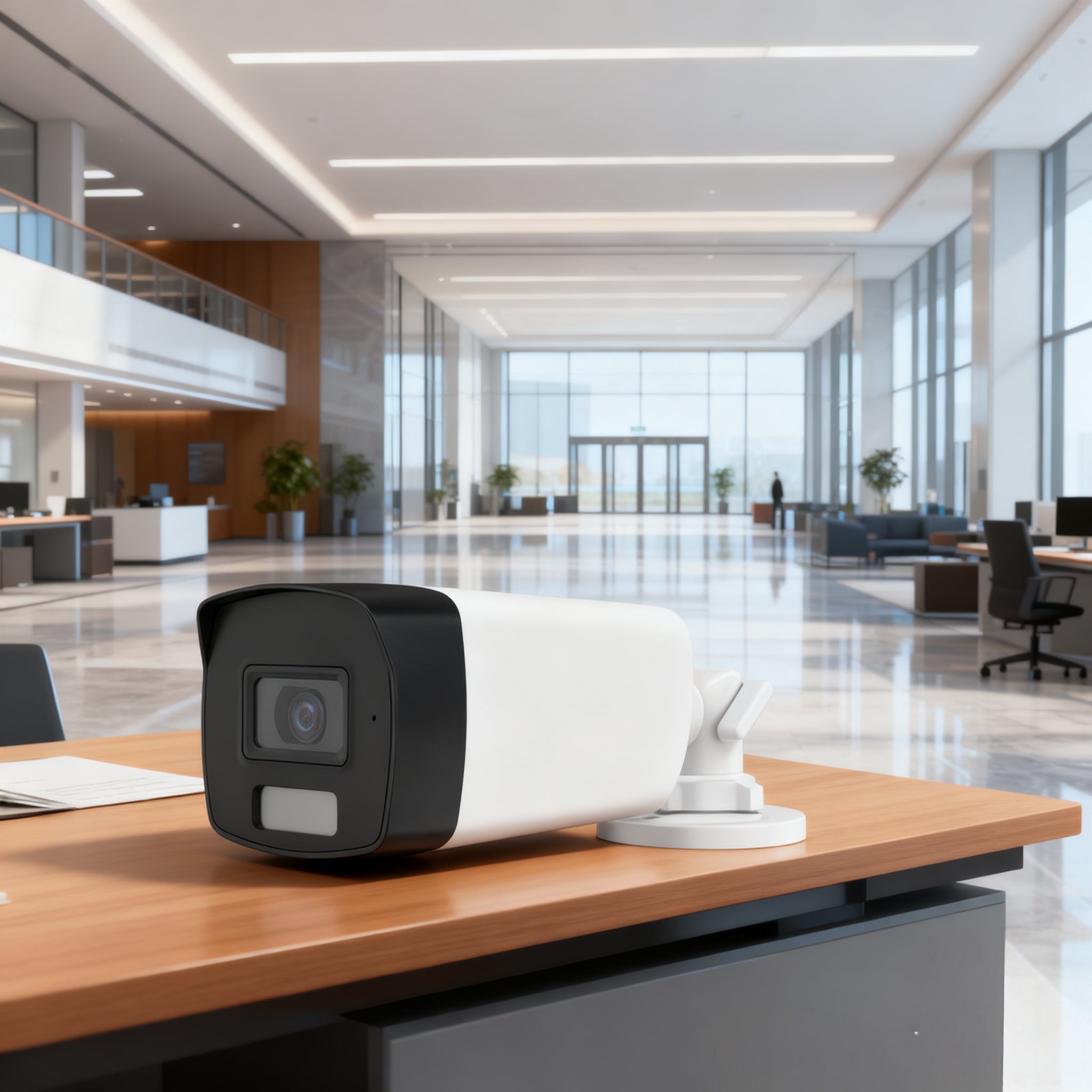

HIKVISION DS-2CE17D0T-LFS 2MP Dual Light Audio Fixed Bullet Camera
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.
Ask Our Experts Text Chat | Email |
Important Information Regarding Order and Pricing
|
Quality Certifications: |
2MP Dual Light Audio Fixed Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm and 6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Up to 40 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS_/li>
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
Available models:
Product Data
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
6 mm, horizontal FOV: 49.2°, vertical FOV:28.3 °, diagonal FOV: 56.1°
- Lens MountM12
- Illuminator
- Supplement Light TypeWhite Light;IR
-
Supplement Light Range
IR : Up to 40 m
White Light : Up to 40 m
- Image
- Image SettingsBrightness, Sharpness, Smart IR
-
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
- Day/Night ModeIR/White Light
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementYes
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
-
Material
Front cover: Metal
Main body: Plastic
- Dimension216.6 mm × 78.9 mm × 75.4 mm (8.53" × 3.10" × 2.97")
- Approx. 339 g (0.75 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
-
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 4.8 W
- Approval
- ProtectionIP67
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
-
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
6 mm, horizontal FOV: 49.2°, vertical FOV:28.3 °, diagonal FOV: 56.1°
- Lens MountM12
- Supplement Light TypeWhite Light;IR
-
Supplement Light Range
IR : Up to 40 m
White Light : Up to 40 m
- Image SettingsBrightness, Sharpness, Smart IR
-
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
- Day/Night ModeIR/White Light
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementYes
- White BalanceAuto/Manual
- AGCYes
- Video OutputSwitchable TVI/AHD/CVI/CVBS
-
Material
Front cover: Metal
Main body: Plastic
- Dimension216.6 mm × 78.9 mm × 75.4 mm (8.53" × 3.10" × 2.97")
- Approx. 339 g (0.75 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
-
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 4.8 W
- ProtectionIP67
