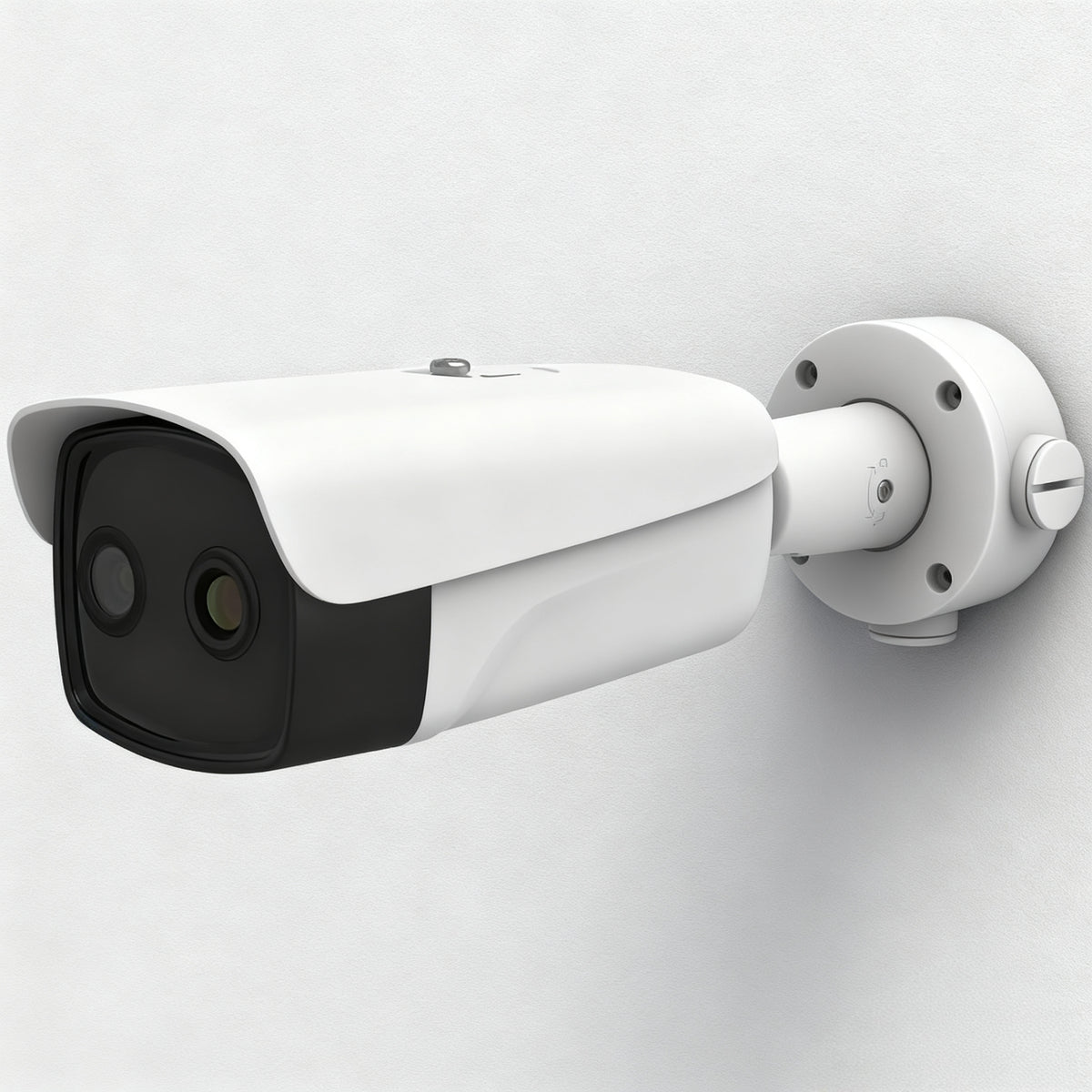

HIKVISION DS-2TD2637-10/PY Thermal & Optical Bi-spectrum Network Bullet Camera

Name: HIKVISION DS-2TD2637-10/PY Thermal & Optical Bi-spectrum Network Bullet Camera
Brand: HIKVISION
Price: 1469831.00 CAD
Availability: InStock

In stock

SKU: DS-2TD2637-10/PY

$1,469,831.00

Our standard leading time is estimated to be 40 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

Product variants

Get More Information
Do you have any question about the Products?Contact us now via sales@hikdistribution.com.

Ask Our Experts

Text Chat | Email

Important Information Regarding Order and Pricing

The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Please contact us to get the latest discount information (we can offer lower prices than all dealers).
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Please note that the prices mentioned are subject to the final Proforma Invoice (PI) prices, which will be provided to you after confirming your order. Additionally, the shipping costs for the products will be calculated separately and added to the total value of the order.
Final Price Explanation: Our prices include VAT and shipping charges. Please note that customs duties are not included.
If you have any further questions or need assistance, please don't hesitate to reach out. We are committed to providing you with the best price and service for your order.
We guarantee that the products we sell are official original products with the latest firmware versions. If you require the latest firmware for this product, please contact our customer service directly.
As authorized distributors, all orders and customs documents are provided by the original manufacturer. We also provide official technical support. For project-based orders, local warranty is provided by the manufacturer, while we provide warranty for dealer orders.

If you have any other inquiries or need further clarification, please feel free to let us know. We are here to assist you.

Quality Certifications:

Thermal & Optical Bi-spectrum Network Bullet Camera

384 × 288 resolution, 17 μm, VOx UFPA, NETD ＜ 35 mK (25 °C, F# = 1.0)
Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Fire detection algorithm
High quality detector with 10 years guarantee

Available models:

DS-2TD2637-10/PY

Add to Favorites

Product Data

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution384 × 288
Pixel Interval17 μm
Response Waveband8 μm to 14 μm
NETDLess than 35 mK (@25 °C,F#=1.0)
Focal Length25 mm
IFOV0.68 mrad
Field of View14.9° × 11.2° (H × V)
Min. Focusing Distance13 m
ApertureF1.0
Digital Zoom×2, ×4, ×8

Optical Module
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed1s to 1/100,000s
Focal Length12 mm
Field of View25.25° × 14.44° (H × V)
Aperture (Range)F1.6
WDR120 dB

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator
IR DistanceUp to 100 m
IR Intensity and AngleAutomatically adjusted

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main Stream
Thermal:

25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:

60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:

50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:

60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video Compression
Main Stream: H.265/H.264

Sub-Stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11

Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input2-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface

General
Web Client Language
32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

PoE (802.3af, class 3)
Power Consumption
24 VAC ± 25%: 0.38 A to 0.22 A, max. 9 W

12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W

PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
Protection Level
IP67 Standard

TVS 6000 V lightning protection, surge protection, voltage transient protection
Dimension376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
WeightApprox. 1.82 kg (4.01 lb)
